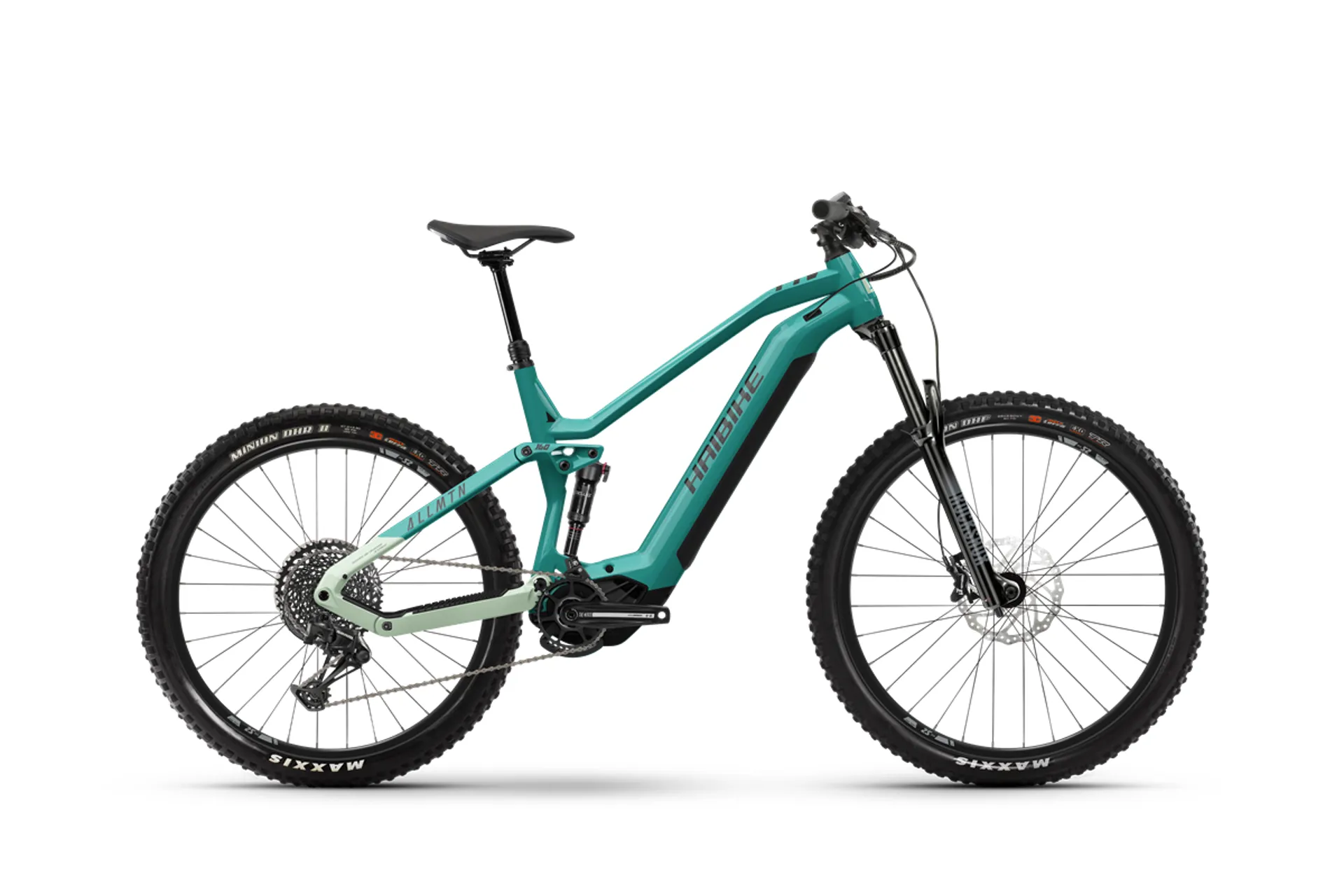

Haibike Allmtn 2 27.5/29er Electric Full Suspension MTB - Aqua

Season:2022

Brand:Haibike

Code:30131AQU

With the new AllMtn 2, all paths are open to you: Whether tricky root passages, flow trails or tough climbs. With 160 mm suspension travel and a wheel mix of 29" at the front and 27.5" at the rear, you can rollover any obstacle with ease and benefit from perfect traction on steep uphills. With the support of the new, more compact and more powerful Yamaha PW-X3 motor with a 630 Wh battery, you'll get up the mountain quickly and have guaranteed fun on any terrain.

Haibike Allmtn 2 2022 Key Features:
  • DRIVE UNIT Yamaha PW-X3, 85Nm, 25km/h
  • BATTERY InTube 630Wh
  • FORK RockShox 35 Gold RL, Travel: 160mm
  • MIXED WHEEL SIZES 27.5" / 29"
Technical Information
  • ENGINE: Yamaha, PW-X3, 250 Wh, 85 Nm
  • DISPLAY: Yamaha, Side Switch, 1.7" LCD, 7 functions
  • BATTERY: Yamaha, InTube, 630 Wh
  • FRAME FAMILY: Haibike, AllMtn PW-X3, Aluminium
  • FORK: RockShox, 35 Gold RL, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
  • DAMPER: RockShox, Deluxe Select Plus, Air, Trunnion Mount
  • CRANK ARM: Haibike Components, The Crank ++, Aluminium
  • BRAKE (FRONT): TRP, Slate T4, Hydraulic disc brakes
  • BRAKE (REAR): TRP, Slate T4, Hydraulic disc brakes
  • TUBE: Presta valve
  • RIM (FRONT): WTB, ST i30 TCS, Double Wall
  • RIM (REAR): WTB, ST i35 TCS, Double Wall
  • CLAMPING RING: Internal hexagon, 38.1 mm
  • REAR DERAILLEUR: Sram, SX Eagle
  • SHIFT LEVER: Sram, SX Eagle, Trigger switch
  • BOTTOM BRACKET: integrated in the motor
  • SPROCKET: Sram, Eagle PG1210, 11 - 50 teeth
  • CHAIN: Sram, SX Eagle
  • CHAINRING: Sram, 38 teeth
  • CHAIN GUIDE: Nylon direct-mount
  • BRAKE LEVER: TRP, Slate T4, Aluminium
  • BRAKE DISC (FRONT): Tektro, TR203, 203 mm
  • BRAKE DISC (REAR): Tektro, TR203, 203 mm
  • TYRE (FRONT): Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch
  • TYRE (REAR): Maxxis, Minion DHR II, 66-584, 27.5 x 2.6 inch
  • FRONT WHEEL HUB: Haibike Components, The Hub ++, 6-bolt standard
  • REAR WHEEL HUB: Haibike Components, TheHub ++ Thru-axle 12x148, 6-bolt standard
  • SPOKES: Sapim, Race
  • HANDLEBAR: Haibike Components, TheBar +++, 780 mm
  • GRIPS: Haibike, MTB grips
  • STEM: Haibike Components, TheStem +++, 31.8 mm
  • HEADSET: Acros, BlockLock, Aluminium
  • SADDLE: Selle Royal, Vivo
  • SEAT POST: Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
  • PEDALS: Freeridepedal, Aluminium, with Reflector
  • PERMITTED TOTAL WEIGHT: 150.0 kg

Please Note – Whilst we endeavour to provide up to date information, manufacturers specifications and designs can change without prior notice.
Sizing Information
Height:Size:
5’4″ – 5’8″41cm
5’7″ – 5’10”44cm
5’9″ – 6’1″47cm
5’11” – 6’2″50cm

SMLXL
FRAME HEIGHT (CM)41.0 cm44.0 cm47.0 cm50.0 cm
SEAT TUBE ANGLE75.0 degrees75.0 degrees75.0 degrees75.0 degrees
SEAT TUBE OFFSET (MM)23.0 mm23.0 mm23.0 mm23.0 mm
SEAT ANGLE77.0 degrees77.0 degrees77.1 degrees76.9 degrees
HEAD TUBE LENGTH120.0 mm120.0 mm130.0 mm140.0 mm
HEAD TUBE ANGLE (DEGREES)64.5 degrees64.5 degrees65.0 degrees64.5 degrees
TOP TUBE HORIZONTAL570.0 mm600.0 mm615.0 mm659.0 mm
CHAIN STAY LENGTH460.0 mm460.0 mm460.0 mm460.0 mm
BOTTOM BRACKET DROP-20.0 mm-20.0 mm-20.0 mm-20.0 mm
WHEELBASE1220.0 mm1250.0 mm1259.0 mm1313.0 mm
STACK646.0 mm646.0 mm610.0 mm664.0 mm
REACH421.0 mm451.0 mm475.0 mm505.0 mm
